The IPS TFT LCD has a viewing angle of up to 178 degrees, which means the picture can maintain high color accuracy and clarity when viewed from almost any angle.
If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.

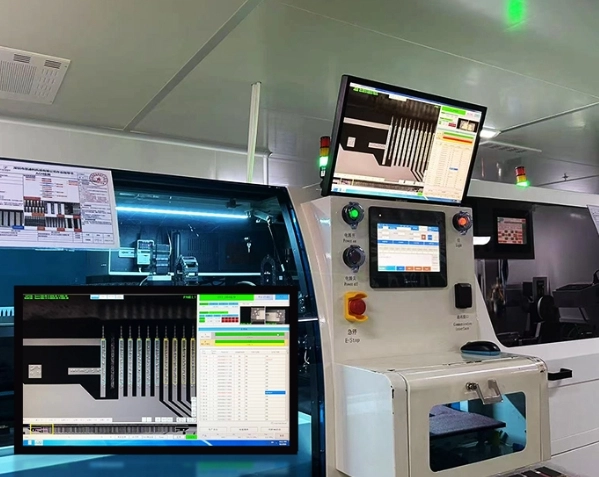

We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
Item | Specification |
LCD Size | 7.0 |
Resolution | 1024×600 |
Interface | RGB(54Pin-0.5mm) |
Brightness(cd/m²) | 500nits |
Viewing Direction | Free |
Pixel Pitch | 0.1505 (H) x 0.1432 (V) |
Display Colors | 16.7M |
Active Area | 154.21 (H) x 85.92 (V) |
Outline Dimension(mm) | 209.72 (H) x 132.31 (V) x 4.82 (D) |
LCM Driver IC | HX8282-A11/HX8696-A01 |
Operation Temp | -20~70°C |
Storage Temp | -30~80°C |

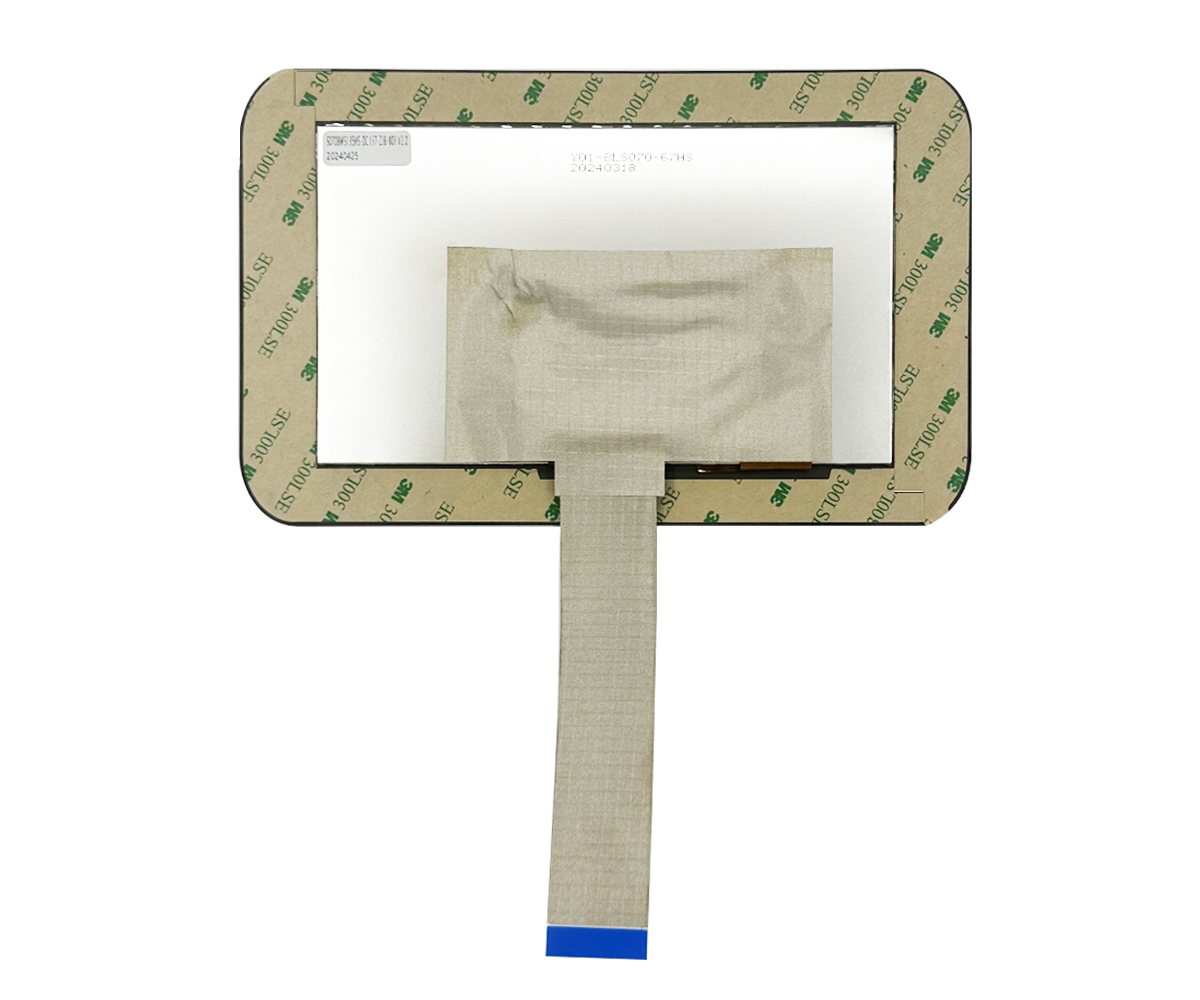

Bonding Type with LCM | Perimeter Bonding |
TP Driver IC | GT911 |
TP Interface | I²C |
