Extensive function for adapter board（Realtek / Lontium / ITE / TOSHIBA solution provider）
- HDMI 1.4./Display Port 1.2
- On Screen Display menu
- External PWM adjustable
- RGB/LVDS/EDP/MIPI Support
- DDC/CI support by embedded DDC I²C-bus interface
- Fully programmable zoom ratios, Support non-linear scaling from 4:3 to 16:9 or16:9 to 4:3
-
Industrial-grade design
If a display monitor need work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also PCBA need a long life time
LCD with 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
PCB 100% with immersion Gold Process to ensure strong wear resistance、excellent electrical conductivity and welding reliability
- All solid state capacitors
- Low EMC design ClassB：EN55032/EN55035
- High ESD protection (air ±8KV / contact±4KV )
- Long life time（at least 50000 hours）
-
High Brightness
The high-brightness displays maintain content visibility in various lighting conditions, especially in strong outdoor light environments.
Most of our high-brightness displays can reach over 800cd/m², or some even go up to 2500cd/m²
- High contrast enhances image sharpness and detail richness
- SunlightVisible
- High color reproduction
-
IPS TFT LCD
- Excellent color reproduction
- Good energy efficiency
- High durability, able to withstand a certain degree of impact and pressure
- The IPS TFT LCDhas a faster response speed and can quickly switch between different colors, reducing smearing and afterimages.
-
AOI For Quality Guarantee
If a display can work stably for a long time, not only requires the factory have a various production system (ISO9001/IATF16949/ISO13485) , but also with strict AOI inspection for TFT LCD bonding.
We 100% made AOI during the FOG manufacturing process. The number of conductive particles in IC is at least 5, in FPC is 10.
-
Customize Service
- We made the Cover Glass as your request. LOGO/Color/Shape/Thickness...
- Customize the Backlight, brightness and thickness could be change
- Customize the Backlight, brightness and thickness could be change
- Customize the interface, TTL/LVDS/MIPI/EDP/DP/HDMI/Type-C/VGA/USB-A
- Customize FPC and Cable
- Customize housing for easier assembly

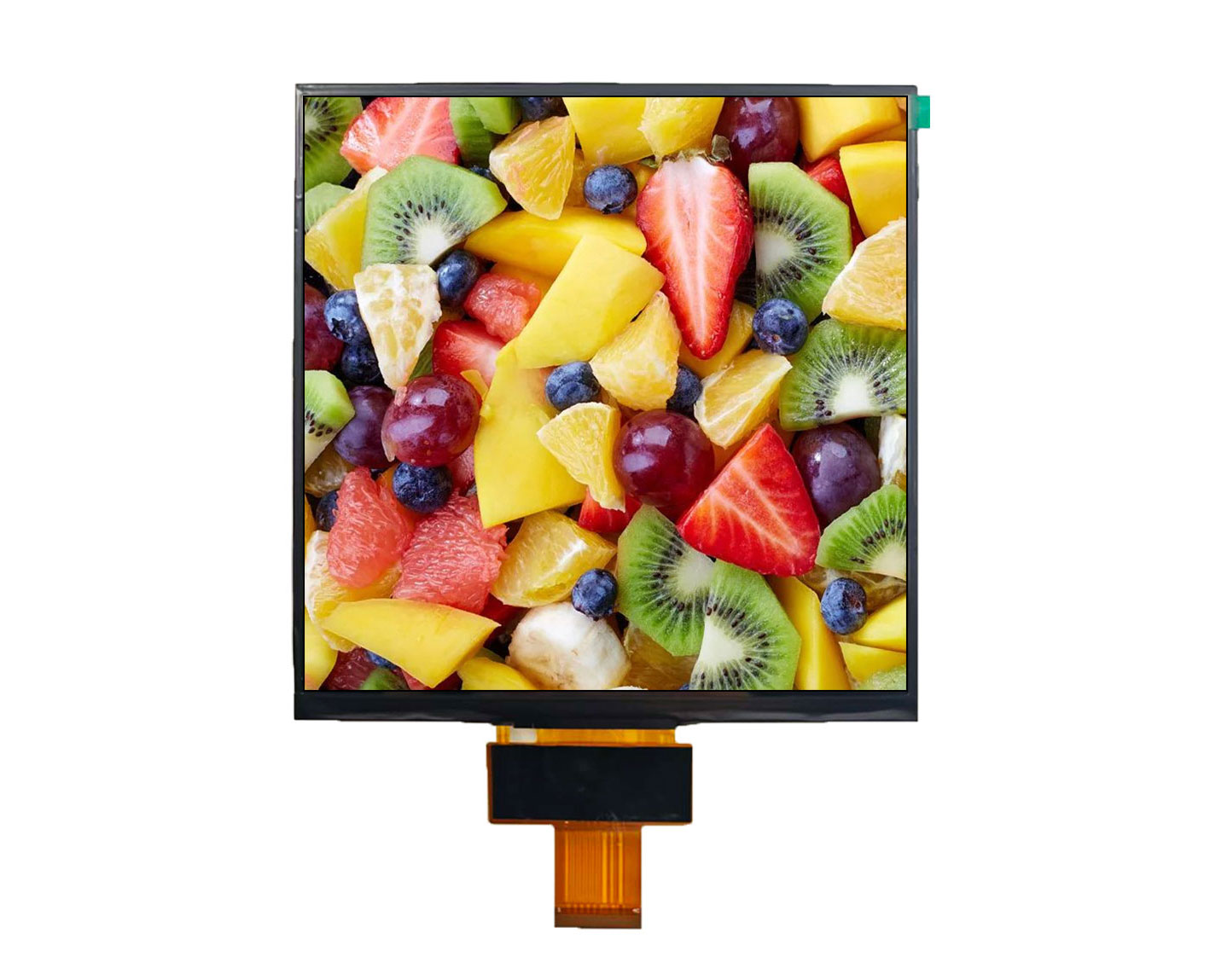

| Item | Specification |
| LCD Size | 7.5 inch |
| Resolution | 800×800 |
| Video Interface | HDMI/Type-C |
| Brightness（cd/m²） | 850nits |
| Viewing Direction | Free |
| Active Area |
135.36 (H) x 135.36 (V) |
| Pixel Pitch | 0.1692 (H) x 0.1692(V) |
| Display Colors | 16.7M |
| TP Interface | I²C(Type-C) |
| Outline Dimension（mm） |
142.52 (H) x 148.20 (V) x 6.96 (D) |
| Operation Temp | -20°C~70°C |
| Storage Temp | -30°C~80°C |
| Power Input | 12V/2A |
