CVBS (Composite Video Baseband Signal) is a common analog video interface, typically connected with a yellow RCA connector, used for transmitting composite video signals. The CVBS signal includes brightness (Y), chrominance (C), and synchronization signals, all of which are mixed together and transmitted through a coaxial cable.

Main features of CVBS:

1. Single-wire video transmission: CVBS transmits all video information through one cable, simplifying the connection. However, this can cause interference between brightness and chrominance signals, resulting in lower signal quality.
2. Suitable for standard definition devices: CVBS is typically used for standard definition (SD) equipment, with typical resolutions of 480i (NTSC) or 576i (PAL), and does not support high-definition video.
3. Simple and easy-to-use interface: The yellow RCA connector is used for video signal transmission, while red and white RCA connectors are used for left and right audio channels.
4. Strong compatibility: CVBS is widely used in older televisions, DVD players, and cameras. While its signal quality is inferior compared to modern digital interfaces, it still has significant applications in some older or specialized settings.

Common CVBS applications:

• Analog television: CVBS was the main video input interface for early analog televisions.
• DVD/VCD players: Most early optical disc players used the CVBS interface.
• Surveillance systems: Older CCTV cameras often used CVBS to transmit video.
• Early gaming consoles: Many older game consoles used the CVBS interface to connect to televisions.

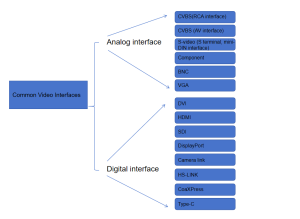

Relationship Between CVBS, S-Video, YUV, RGB, and Component Video

CVBS, S-Video, YUV, RGB, and Component Video are all related to video signal transmission, but they differ in their signal processing methods, usage areas, and transmission quality. Let’s analyze them in detail, along with the differences in application between Europe and the United States:

1. CVBS (Composite Video Broadcast Signal)

• Concept: CVBS is a composite video signal that combines brightness (Y), chrominance (C), and synchronization signals into one signal.
• Features: It transmits an analog video signal, but due to the mixing of brightness and chrominance signals, the signal quality is lower and prone to interference.
• Interface: Typically transmitted via a yellow RCA connector.
• Application: Widely used during the analog television era in both Europe and the U.S.

2. S-Video (S端子)

• Concept: S-Video stands for “Separate Video,” which separates the brightness (Y) and chrominance (C) signals for transmission.
• Features: Compared to CVBS, S-Video provides better video quality by separating the brightness and chrominance signals, reducing interference between them.
• Interface: The common interface is a 4-pin DIN connector.
• Application: Commonly used in home video devices like VCRs, DVD players, and camcorders, especially in the European and U.S. markets.

3. YUV (Y, U, V) and Component Video

• Concept: YUV is a color encoding format where Y represents the brightness (Luma) and U and V represent the chrominance (Chrominance) differences. Component Video refers to separating the brightness (Y) from two chrominance components (U/V or Pb/Pr) for transmission.
• Features: Component video can provide high-quality analog video, nearly matching digital signal quality. Compared to CVBS or S-Video, it retains more of the original image information.
• Interface: The typical interface uses three RCA connectors—green (Y), blue (Pb/U), and red (Pr/V).
• Application: Commonly used in devices like DVD players and high-definition TVs, widely used in the U.S. home video market.

4. RGB (Red, Green, Blue)

• Concept: RGB is the most basic color model, transmitting three independent color components: red, green, and blue.
• Features: RGB provides the highest signal quality because it directly transmits the three primary colors without converting color space. It is the preferred signal for computer monitors and high-end video equipment.
• Interface: RGB signals can be transmitted via VGA (used in computer monitors) or SCART (a multi-functional interface common in Europe).
• Application: RGB is mainly used in computer monitors, gaming consoles, and professional video equipment. It is commonly transmitted via the SCART interface in Europe.

5. Differences Between Europe and the U.S. Usage

Europe:

• • RGB Transmission: Europe widely uses the SCART interface, which can transmit RGB signals. SCART is a versatile interface that can transmit both audio and video, and it is known for its high-quality RGB signal transmission. RGB is commonly used in high-definition equipment.
  • PAL Standard: Europe typically uses the PAL (Phase Alternating Line) video standard, which transmits 25 frames per second and is suited for a 50Hz power frequency.
•

U.S.:

• • Component Video (YUV) Transmission: The U.S. more commonly uses Component Video (YUV), transmitted through three RCA connectors (Y, Pb, and Pr). This method is widespread in DVD players, TVs, and projectors.
  • NTSC Standard: The U.S. uses the NTSC (National Television System Committee) standard, transmitting 30 frames per second and suited for a 60Hz power frequency.

Comparison of Signal Quality

• CVBS: The lowest quality, as the video signal is mixed together, leading to greater potential for interference.
• S-Video: Slightly better than CVBS, as it separates brightness and chrominance signals, reducing interference.
• YUV (Component Video): Fully separates brightness and chrominance, providing near-HD quality video. It is widely used in the U.S. and is capable of maintaining more original image information.
• RGB: The highest quality video transmission, directly transmitting the primary colors without any color space conversion. It is used in professional video devices and high-end displays.

Summary

• CVBSis the most basic video transmission format and is gradually being phased out.
• S-Videoprovides slightly better video quality but is still an analog signal.
• YUV (Component Video)is widely used in the U.S., providing high-quality video transmission through RCA connectors.
• RGBis the highest quality video transmission method and is primarily used in Europe, often via SCART for high-definition equipment.

Each of these formats has its place, depending on the required video quality and the specific region or device type.

Indeed, although analog video interfaces like CVBS were expected to be phased out, the growing demand for FPV (First-Person View) systems in drone technology has brought CVBS back into the spotlight. In drone video transmission systems, CVBS has some unique advantages despite being an older analog format.

Here are several advantages of using CVBS in FPV (First-Person View) drone video transmission applications:

Low Latency Transmission:

CVBS, as an analog signal, offers very low transmission latency, which is crucial for real-time control and monitoring in drones. This is especially important in fast-response scenarios such as FPV racing or live task monitoring. Unlike digital transmission, analog signals like CVBS don’t require complex encoding and decoding processes, which significantly reduces latency.

Low Bandwidth Requirement:

CVBS has relatively low bandwidth requirements, making it suitable for long-distance transmission or environments with poor signal quality. This is particularly beneficial for drone communications in wireless environments prone to interference. Compared to high-definition digital video, CVBS signals have lower data link demands, which means they can be transmitted using existing radio systems, reducing both cost and complexity.

Interference Resistance and Reliability:

CVBS signals have a good ability to resist interference during wireless transmission. Although the image quality may be lower, the signal is stable, making it ideal for long-distance and unstable signal scenarios. In environments with weak signals or noise, CVBS signals are often easier to recover compared to digital signals, ensuring a more reliable video feed.

Wide Device Compatibility:

Many existing analog cameras, video transmission devices, and displays still support CVBS interfaces, especially in the traditional FPV drone market. This broad compatibility eliminates the need for users to purchase additional or upgraded equipment, lowering costs. In budget-constrained or lower-quality video requirement scenarios, using CVBS maximizes device compatibility and longevity.

Low Power Consumption:

CVBS transmission consumes relatively low power, especially given that there are fewer encoding and decoding demands on the transmitter and receiver. This is crucial for battery-powered drones, as reducing power consumption helps extend flight time.

Simpliied Wiring:

CVBS only requires a single signal wire to transmit video, and the wiring is simple and lightweight, which is ideal for drones that have strict size and weight constraints. The simplicity of the setup makes it easier to integrate into compact, lightweight drone systems.

Although CVBS does not match modern interfaces like HDMI or SDI in terms of resolution and image quality, it remains a viable and cost-effective choice in drone video transmission systems, particularly in scenarios where low latency, low bandwidth, and strong interference resistance are essential.
